The 7 Pin Trailer Plug

  • Small round (for older vehicles)

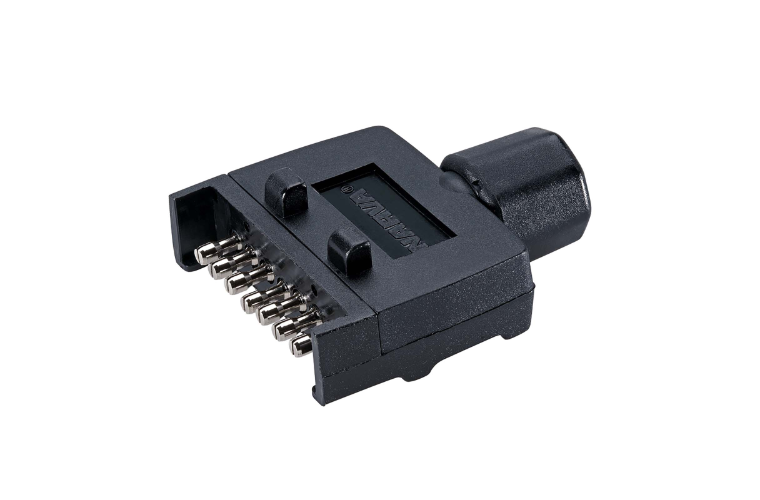

  • 7 pin flat (for late model vehicles)

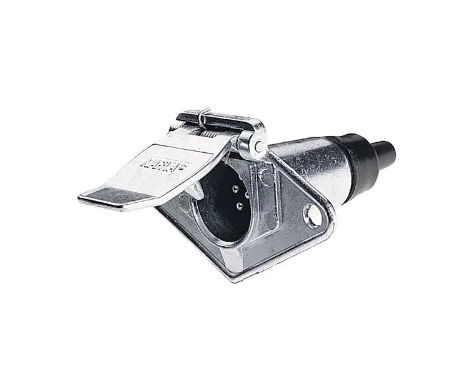

7 Pin Trailer Plug Small round

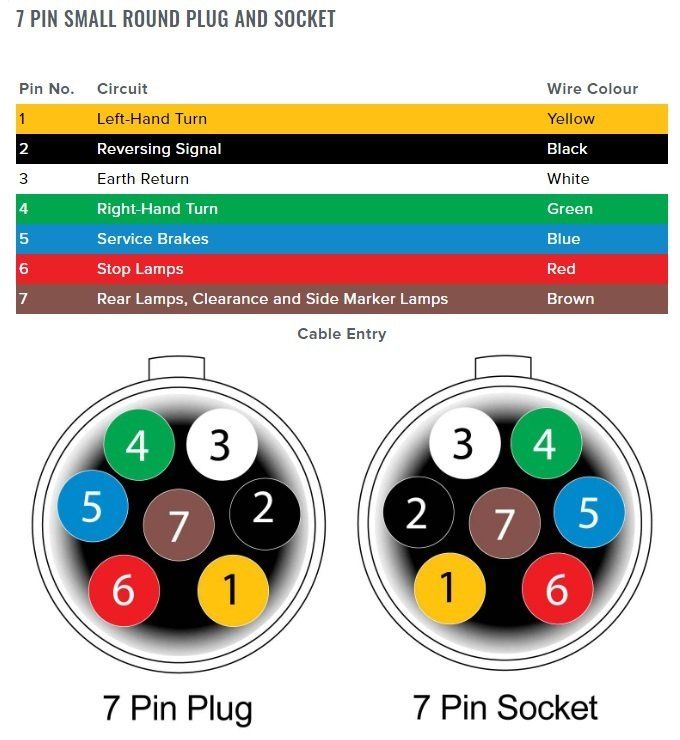

7 Pin Trailer Plug Small Round - Diagram

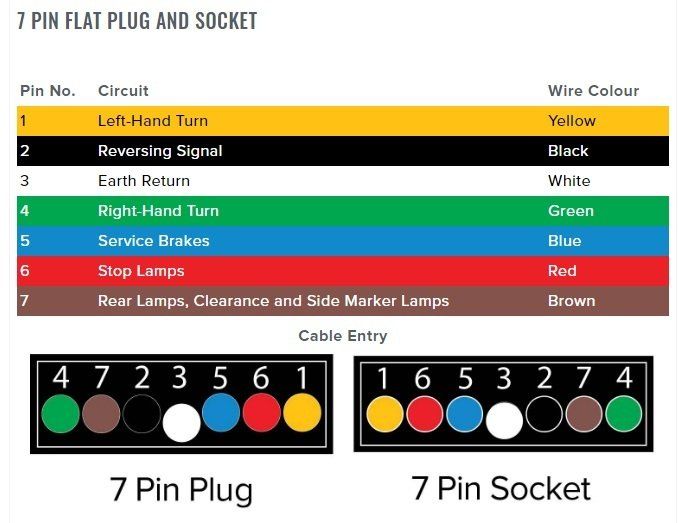

7 Pin Trailer Plug Small Flat - Diagram
12 pin flat plug and socket diagram

12 pin trailer plugs enable all connections for the 7 pin plug to tow a caravan, plus the ability to wire accessories.

  1. Left-hand turn indicator
  2. Reversing Signal
  3. Earth return
  4. 4. Right-hand turn indicator
  5. Service Brakes
  6. Stop Lamps
  7. Rear Lamps, Clearance and Side Marker Lamps
  8. Battery Charger/Winch
  9. Auxiliaries/Battery Lead
  10. Earth Return
  11. Rear Fog Lamp
  12. Auxiliaries
12 Pin Plug and Socket Cable Entry Diagram

The 12 pin rectangle trailer plug consists of a row of 7 pins and a row of 5 larger pins.


The row of 7 pins transfers electrical power to run the towing vehicle’s lighting system and electrical braking power.

Anderson plug installation to run the vehicle lighting system

The larger pins are used for higher current most common to run power to a 12 volt fridge or to charge a battery system on a towing vehicle (caravan or camper trailer.)
